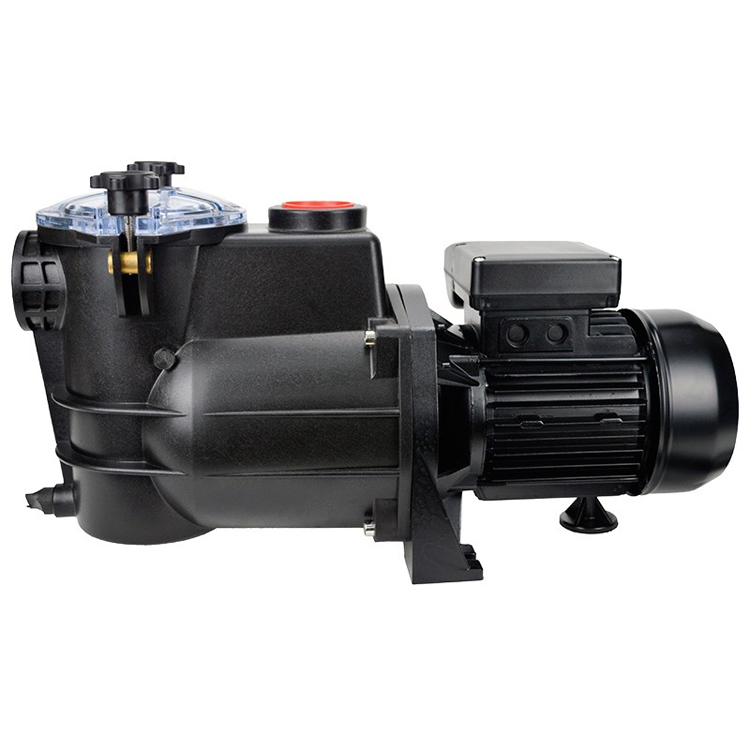

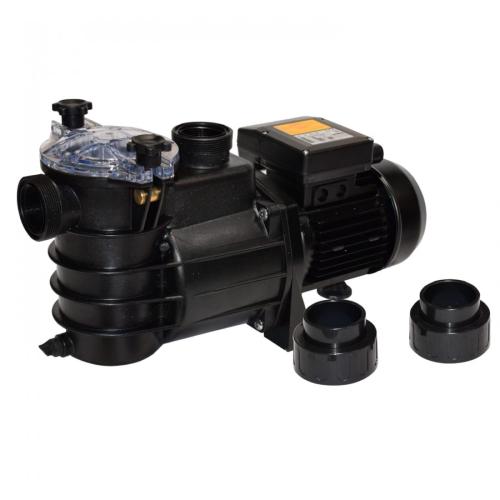

The PSH Mini is a self-priming centrifugal pump (up to 4 mca ), particularly suitable for use in residential swimming pool filtration equipment.
Its high self-priming power makes it the most suitable choice for filtration equipment and pools with pool cleaning suction devices.
This is the best-selling PSH pump model and is suitable for use with salt chlorinators or seawater.
Its dimensions are equivalent to the Saci Optima model, so they are interchangeable.
Thermal protection included in single-phase versions.
Includes 1.5 m cable in single-phase versions.
High-quality mechanical seal and bearings.
Easy-to-use transparent cover for easy pump maintenance.
Available in 4 models: 1/3 CV (MINI-33), 1/2 CV (MINI-50), 3/4 CV (MINI-80) and 1 CV (MINI-100).
The 3/4 hp and 1 hp models are available with single-phase or three-phase motors.
Pre-filter basket integrated into the pump housing.
Insulation class: F
Protection: IP55
Motor: 50 Hz / 2900 rpm.
MINI pump
Category Pool pumps
Manufacturer PSH
ID No. MINI
Stock Available
from price:
684.89 BGN / € 350.18

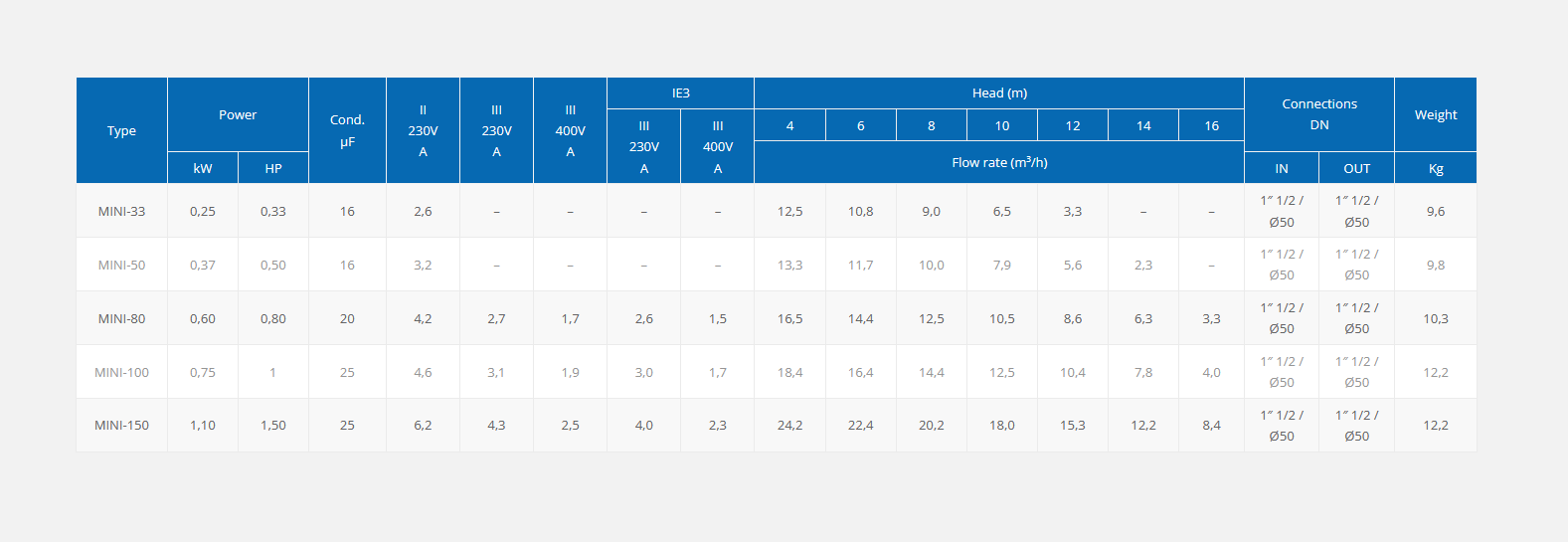

Parameters
| Code | Power kw | Power HP | debit | Volume | electricity | Price | Availability |
|---|---|---|---|---|---|---|---|
| MINI 33 | 0.25kW | 0.33 HP | 6.50 m³/h | 25 m³ | 230 V / 50 Hz | 684.89 BGN / € 350.18 | Upon request |
| MINI 50 | 0.37 kW | 0.50 HP | 7,9m³/h | 30 m³ | 230 V / 50 Hz | 710.64 BGN / € 363.34 | Available |
| MINI 80 | 0.60kW | 0.80 HP | 10.5m³/h | 40 m³ | 230 V / 50 Hz | 752.61 BGN / € 384.80 | Available |
| MINI 100 | 0.75 kW | 1 HP | 12.5 m³/h | 50 m³ | 230 V / 50 Hz | 783.14 BGN / € 400.41 | Available |
| MINI 150 | 1.10kW | 1.50 HP | 18.00m³/h | 72 m³ | 230 V / 50 Hz | 854.68 BGN / € 436.99 | Upon request |
